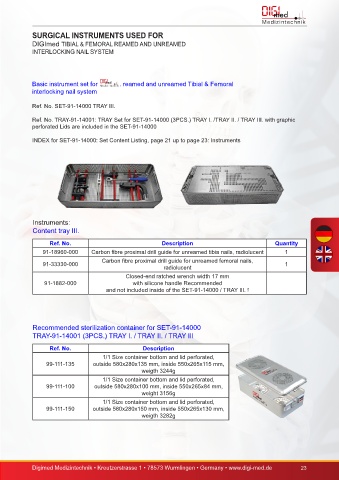

SURGICAL INSTRUMENTS USED FOR

DIGImed TIBIAL & FEMORAL REAMED AND UNREAMED
INTERLOCKING NAIL SYSTEM

Basic instrument set for . reamed and unreamed Tibial & Femoral
interlocking nail system

Ref. No. SET-91-14000 TRAY III.

Ref. No. TRAY-91-14001: TRAY Set for SET-91-14000 (3PCS.) TRAY I. /TRAY II. / TRAY III. with graphic
perforated Lids are included in the SET-91-14000

INDEX for SET-91-14000: Set Content Listing, page 21 up to page 23: Instruments

Instruments:
Content tray III.
Ref. No. Description Quantity
91-18960-000 Carbon fibre proximal drill guide for unreamed tibia nails, radiolucent 1
Carbon fibre proximal drill guide for unreamed femoral nails,
91-33330-000 1
radiolucent
Closed-end ratched wrench width 17 mm
91-1882-000 with silicone handle Recommended
and not included inside of the SET-91-14000 / TRAY III. !

Recommended sterilization container for SET-91-14000
TRAY-91-14001 (3PCS.) TRAY I. / TRAY II. / TRAY III

Ref. No. Description
1/1 Size container bottom and lid perforated,
99-111-135 outside 580x280x135 mm, inside 550x265x115 mm,
weigth 3244g
1/1 Size container bottom and lid perforated,
99-111-100 outside 580x280x100 mm, inside 550x265x84 mm,
weight 3156g
1/1 Size container bottom and lid perforated,
99-111-150 outside 580x280x150 mm, inside 550x265x130 mm,
weigth 3282g

Digimed Medizintechnik • Kreutzerstrasse 1 • 78573 Wurmlingen • Germany • www.digi-med.de 23
