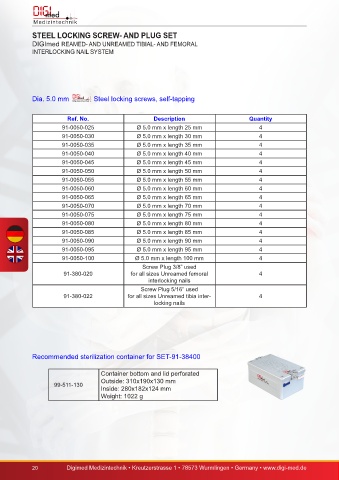

STEEL LOCKING SCREW- AND PLUG SET

DIGImed REAMED- AND UNREAMED TIBIAL- AND FEMORAL
INTERLOCKING NAIL SYSTEM

Dia. 5.0 mm Steel locking screws, self-tapping

Ref. No. Description Quantity
91-0050-025 Ø 5.0 mm x length 25 mm 4
91-0050-030 Ø 5.0 mm x length 30 mm 4
91-0050-035 Ø 5.0 mm x length 35 mm 4
91-0050-040 Ø 5.0 mm x length 40 mm 4
91-0050-045 Ø 5.0 mm x length 45 mm 4
91-0050-050 Ø 5.0 mm x length 50 mm 4
91-0050-055 Ø 5.0 mm x length 55 mm 4
91-0050-060 Ø 5.0 mm x length 60 mm 4
91-0050-065 Ø 5.0 mm x length 65 mm 4
91-0050-070 Ø 5.0 mm x length 70 mm 4
91-0050-075 Ø 5.0 mm x length 75 mm 4
91-0050-080 Ø 5.0 mm x length 80 mm 4
91-0050-085 Ø 5.0 mm x length 85 mm 4
91-0050-090 Ø 5.0 mm x length 90 mm 4
91-0050-095 Ø 5.0 mm x length 95 mm 4
91-0050-100 Ø 5.0 mm x length 100 mm 4
Screw Plug 3/8” used
91-380-020 for all sizes Unreamed femoral 4
interlocking nails
Screw Plug 5/16” used
91-380-022 for all sizes Unreamed tibia inter- 4
locking nails

Recommended sterilization container for SET-91-38400

Container bottom and lid perforated
Outside: 310x190x130 mm
99-511-130
Inside: 280x182x124 mm
Weight: 1022 g

20 Digimed Medizintechnik • Kreutzerstrasse 1 • 78573 Wurmlingen • Germany • www.digi-med.de
